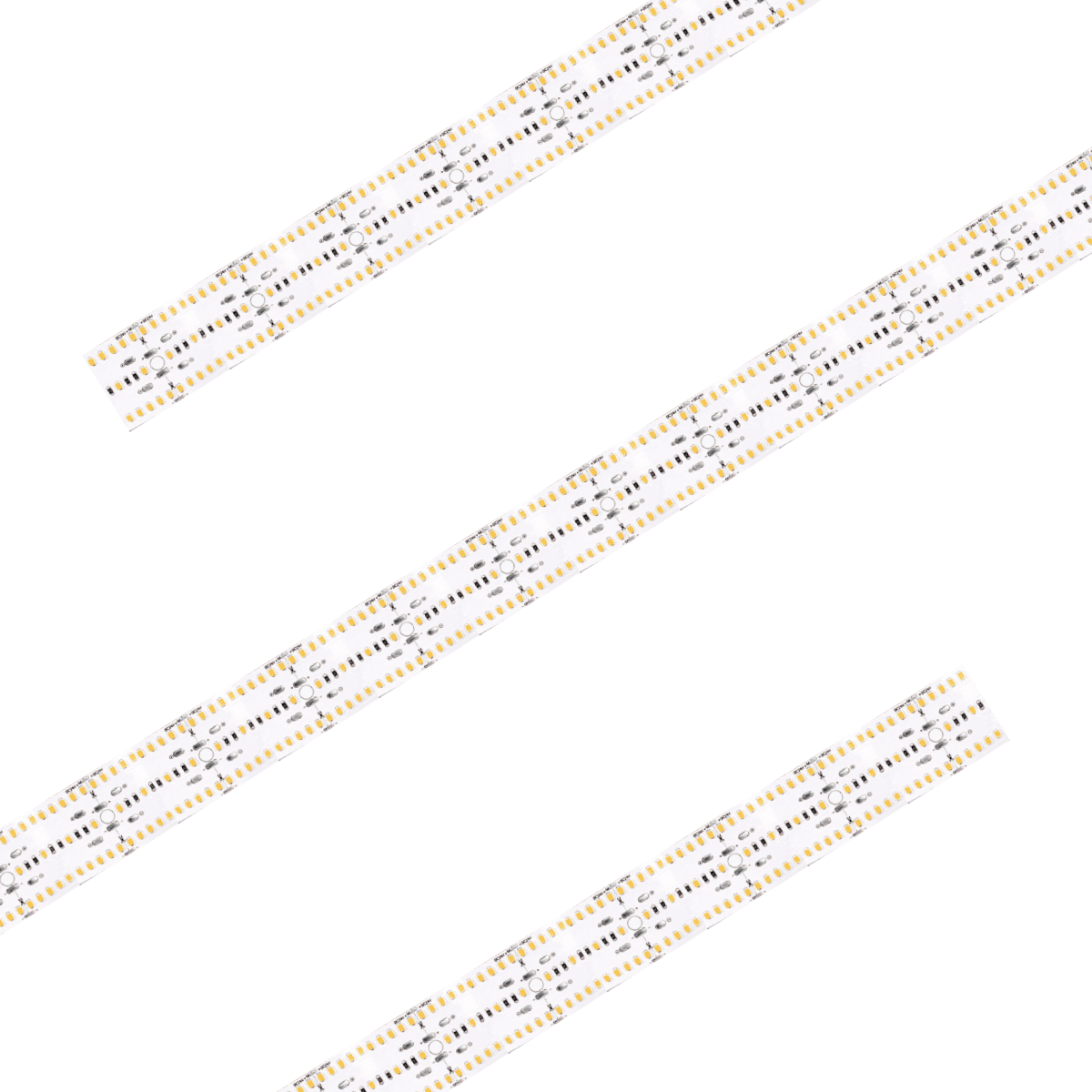

FL-F2835X240-WF0-5M-24-K040

The user can cut the light strip at any position, providing higher flexibility and adaptability for the light strip installation.The metal sinking technology can effectively prevent the oxidation of the pad, thus improving the reliability and stability of the welding.The immersion gold plating process boasts excellent conductivity and outstanding corrosion resistance.

  • 480 LEDs per meter design, low heat, uniform light emission.

  • Available in 2300K、2500K、2700K、3000K、3500K、4000K、 5000K and 6000K

  • 80/90 color rendering index.

  • Lumen output ranging from 4920Lm to 6000Lm per meter.

  • IP rate: IP20

  • 5 year warranty.

  • Led with one BIN system, good color consistent.

  • Adopting alloy wire scheme, ultra-high brightness, stable and reliable.

  • CE/UKCA/ROHS certification

Description

Performance

STEP LENGTH

50MM/24 LEDs

NUMBER LED/M

480

VOLTAGE

24V DC

RA

80/90

BEAM ANGLE

120°

POWER

40W/M

FPC WIDTH

40MM

IP RATE

IP20

MAX. LENGTH PER CIRCUIT

2.5M

COLOR

2300K/2500K2700K/3000K/

3500K/4000K/5000K/6000K
