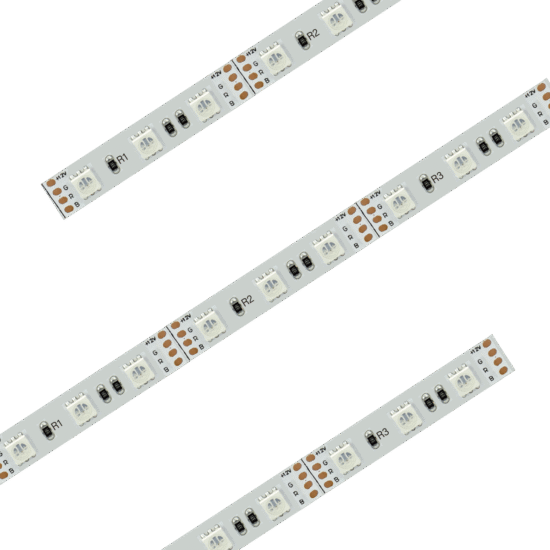

FL-F5050RGBX30-WF0-5M-12/24-K010
The user can cut the light strip at any position, providing higher flexibility and adaptability for the light strip installation.The metal sinking technology can effectively prevent the oxidation of the pad, thus improving the reliability and stability of the welding.
-
60 LEDs per meter design, low heat, uniform light emission.
-
80/90 color rendering index.
-
IP rate: IP20、IP65、IP66、IP67、IP68
-
3 year warranty.
-
Led with one BIN system, good color consistent.
-
Adopting alloy wire scheme, ultra-high brightness, stable and reliable.
-
CE/UKCA/ROHS certification
Description
Performance
STEP LENGTH
100/166.6MM/6/10 LEDs
NUMBER LED/M
60
VOLTAGE
12/24V DC
RA
80/90
BEAM ANGLE
120°
POWER
11.52/13.8W/M
FPC WIDTH
10MM
IP RATE
IP20/IP65/IP66/IP67/IP68
MAX. LENGTH PER CIRCUIT
5M
LUMEN
12V:1041LM/M(FULL LIGHT)510LM/M(ONLY WHITE COLOR @4000K)
24V:1031LM/M(FULL LIGHT)505LM/M(ONLY WHITE COLOR @4000K)
