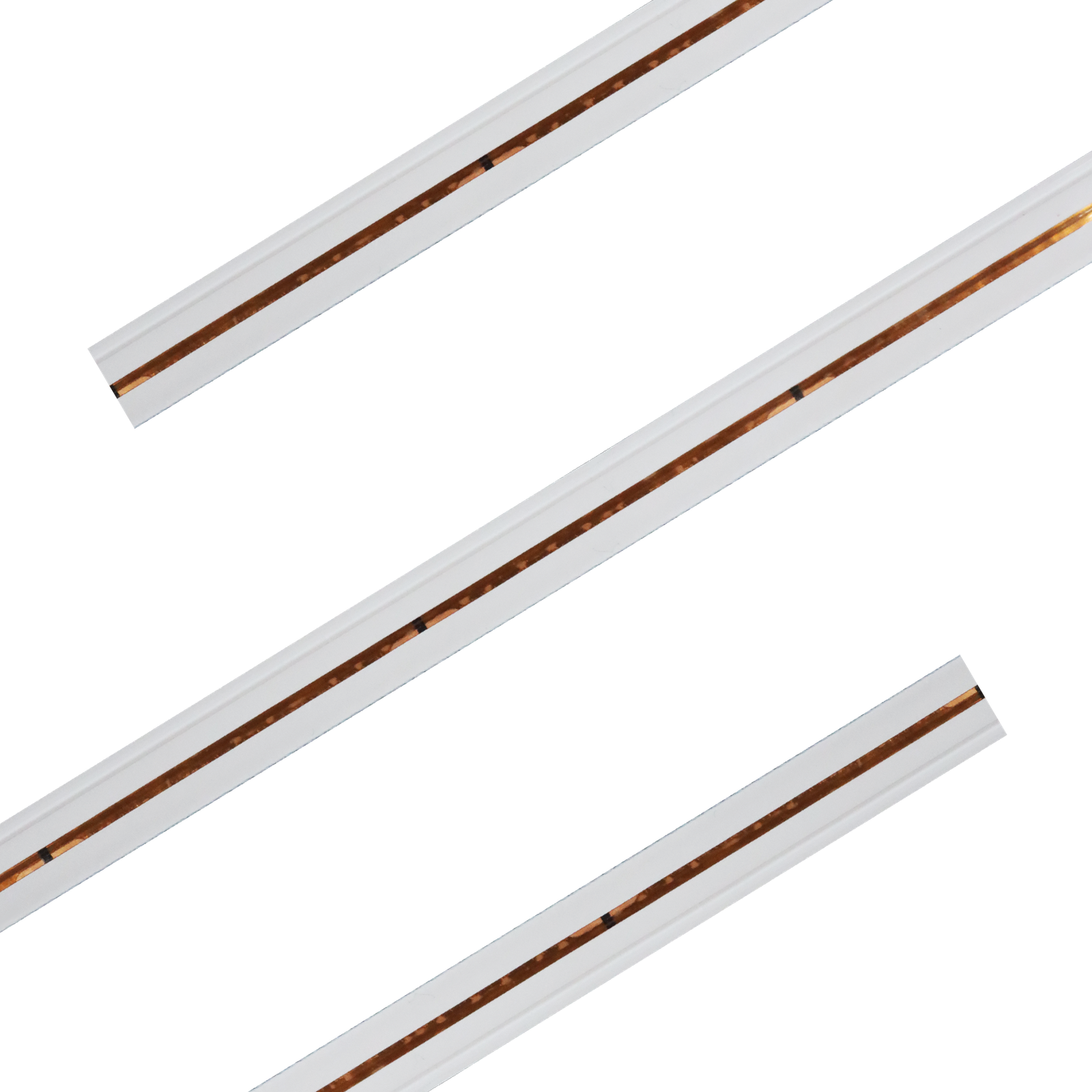

FL-NFS0611-5000-24
Side bending dsign with 6mm luminous surface, uniform light and no light spot, suitable for indoor and outdoor decorative lighting, architectural outline lighting, etc.
-
Available in 2700K、3000K、4000K and 5000K
-
90 color rendering index
-
Lumen output ranging from 289 Lm to 312 Lm per metter
-
Easy installation featuring 3M VHB adhesive backing
-
IP rate: IP 67
Description
Performance
STEP LENGTH
50MM
VOLTAGE
24V DC
CRI
90
POWER
10W
STANDARD LENGTH
5M/30M
MIN. BENDING
R>30MM
IP RATE
IP67
BEAM ANGLE
130°
COLOR
2700K/3000K/4000K/5000K
Specification Sheets
Catalogs/Brochure
Aluminum profile
L1000*W8*H13.5mm
Blendable profile
L1000*W8*H12.2mm
Mounting clips
L30*W8*H13.5mm
Screws
KA3*12
End cap/outlet from end
L24*W14*H8mm
End cap/outlet side
L20*W23.5*H8mm
End cap/outlet from bottom
L20*W14*H17mm
End cap/without hole
L13.5*W14*H8mm
Wires
Silicone glue
10ml/pcs
M12 connector
Electrician angle scissors
Paddle scissors
Stainless steel wire hoop
Automatic Terminal Crimping
A Glue
B Glue
Plug adhesive
Injection machinefor end caps
L550*W610*H750mm
Mixing pipe consumables
Fastener mold - Reference
Soldering free connector
Strip-to-wire
